Updating the Famous Hannah Fairfield Connected Scatterplot
PolicyViz Newsletter #52
Hi all,
Back in 2012, Hannah Fairfield from the New York Times published this connected scatterplot that showed the evolution in the number of miles traveled versus deaths per 100,000 population.
So, in Fairfield’s graphic, the dot on the far left is 1950. Ten years later—near the bottom of that downward line—fatalities had declined but miles driven had increased. Ten years after that, in 1970, deaths and miles driven had both increased. By 2011, the very bottom dot in the bottom-right part of the graphic, deaths were markedly lower than they were 60 years earlier and miles driven had increased by about 6,000 miles per person.
Not everyone loves connected scatterplots. Some find them confusing or hard to read. Personally, I like them; yes, it can take a few minutes to fully understand what’s happening, but I like being able to see the co-movement of two series simultaneously. In a 2016 paper, Steve Haroz, Robert Kosara, and Steven Franconeri found that, in their sample, the connected scatterplot was the most difficult chart for people to read though were also the most effective at engaging readers.
The results suggest that low-complexity connected scatterplots can be understood with little explanation, and that viewers are biased towards inspecting connected scatterplots over the more traditional format.
But I do find that I create connected scatterplots I usually end up in one of two spots: Either the line is basically a straight diagonal because the trends are nearly perfectly correlated (e.g., program participation and spending) or the trends generate a confusing hairball.
But I love the Fairfield graphic. It’s a great example of data working out perfectly to make a clear and interesting graphic. So, what happens when we update it

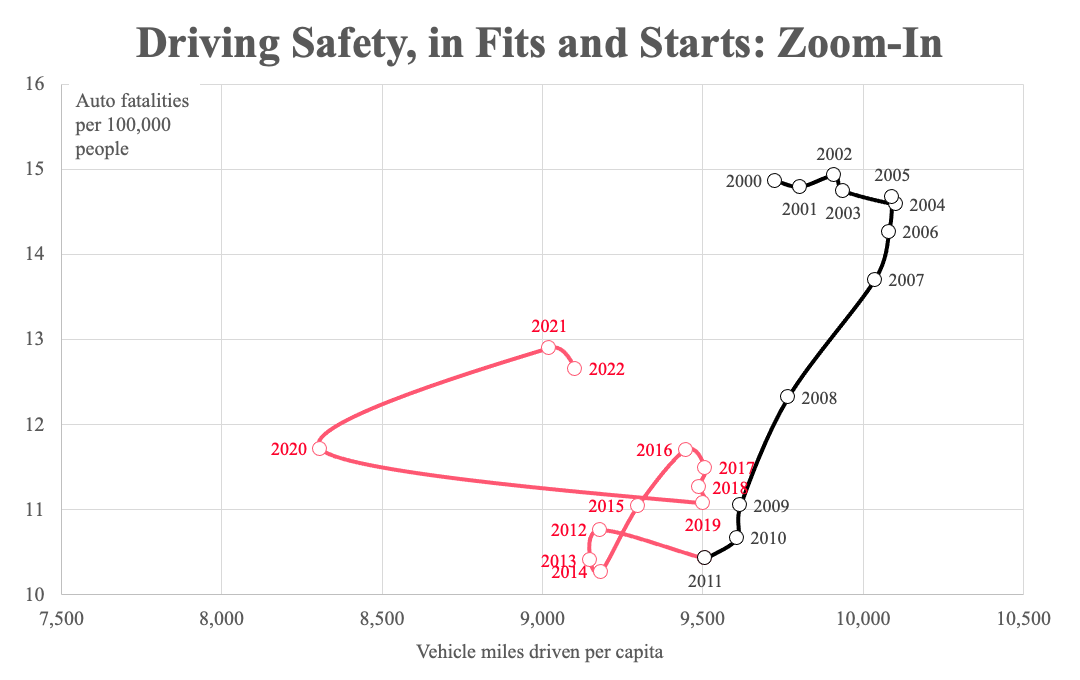

Pretty cool, but the post-2010 period is a bit of a mess—and the 2020 COVID year is clearly an outlier. Let’s zoom in.
Okay, not that much more interesting. I do wonder what Fairfield would have done if she were publishing this graph now. Is the 2012-2016 jumble too confusing or would she add a little annotation telling us not to worry about it?
In my update of the graphic, the vehicle miles data I pulled from the St. Louis Federal Reserve Economic Data (FRED) data site didn’t match Fairfield’s original (fatalities matched). Steve Haroz had provided me the data several years ago when I was interested in using it in my data visualization classes. As you can see in this chart, the 2024 FRED series is pretty much a parallel upward shift from the Fairfield data.
What to do? Well, for this example, I calculated the average difference in the two series in the 1970-2011 period (equal to 986 miles) and subtracted it from each year in the post-2011 period (see next graph). I then used the Fairfield/Haroz series in the 1950-2011 period and the FRED-adjusted numbers in the 2012-2022 period.
It’s not a perfect solution to the mismatch, but it enables me to update the original graphic. If I were doing an in-depth analysis for the Department of Transportation or something, I would spend more time trying to figure out what’s going on, but I think my adjustment works well here.
